Puretec HYBRID-P3 Whole House Rainwater Filtration System

Puretec HYBRID-P3 Whole House Rainwater Filtration System

20″, 1″ Connection, with pump (0.5 kW)

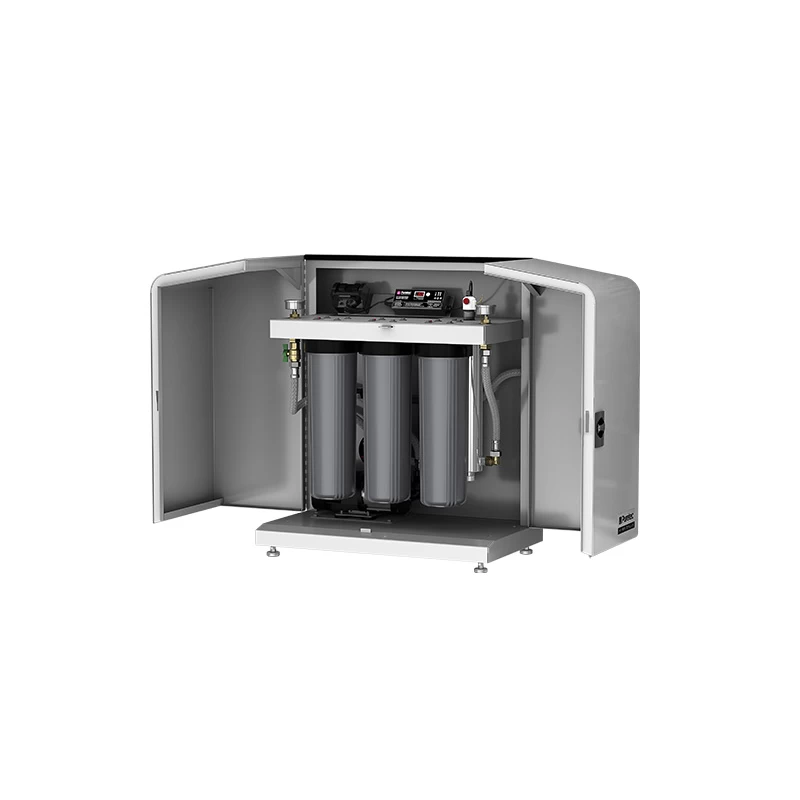

The Puretec Hybrid-P6 is an all-in-one filtration system including pump, 3 stage filtration and finishing with UV sterilisation.
This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater.

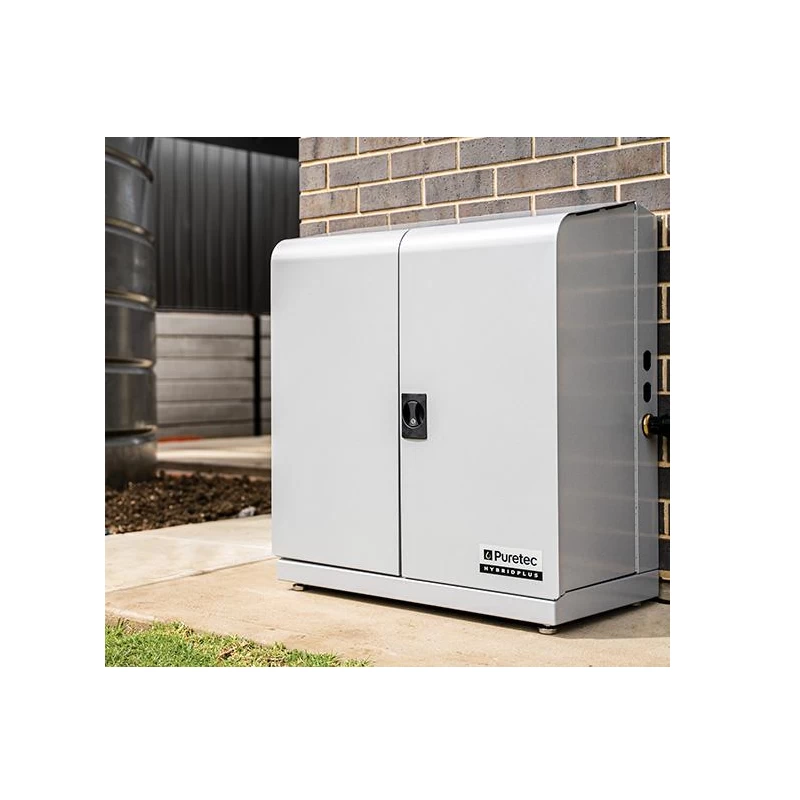

The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding.
It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.
Designed specifically for rainwater, the Puretec HybridPlus is a complete plug & play package with pump, filters & UV in one unit that is weatherproof, rodent-proof, tamper proof and reduces pump noise.
Bacteria protection – Kills 99.9% of E. Coli, Giardia and Cryptosporidium Cysts with Radfire ™ ultraviolet technology, natural process that’s completely eco-friendly and chemical-free.
Unique connection system so that water flow can be connected to the left or right-hand sides for fast, easy and neat installation.
Patented cabinet with gull-wing style access doors looks great whilst providing easy access for maintenance, is corrosion resistant and lockable to prevent tampering.
Neatly concealed ventilation to allow airflow and heat dissipation.
Suitable for other water supplies – depending on water quality (refer to Puretec Customer Care).
Replacement Cartridge(s): Stage 1 filtration – PL05MP2
Stage 2 filtration – CB05MP2
Stage 3 filtration – PX01MP2
UV Lamp: RL6
Quartz Sleeve: RQS6
Grundfos pump model: CMB-SP 3-47
Rated power: 0.5 kW
Pressure controller: PM2
Mains to rains controller: not included
Power Supply: 220-240 VAC / 50 Hz
Maximum current consumption: 3.1-2.8 A
Water temperature range: 0-52°C (protect from freezing)
Self-priming: 4 m
UV dosage @40mJ/cm2: 54 Lpm
UV dosage @30mJ/cm2: 70 Lpm
UV dosage @16mJ/cm2: 130 Lpm
Pump flow rate: 50 Lpm
Connection: 1” BSP [25mm]

View Puretec HYBRID-P3 Whole House Rainwater Filtration System Product Specs
