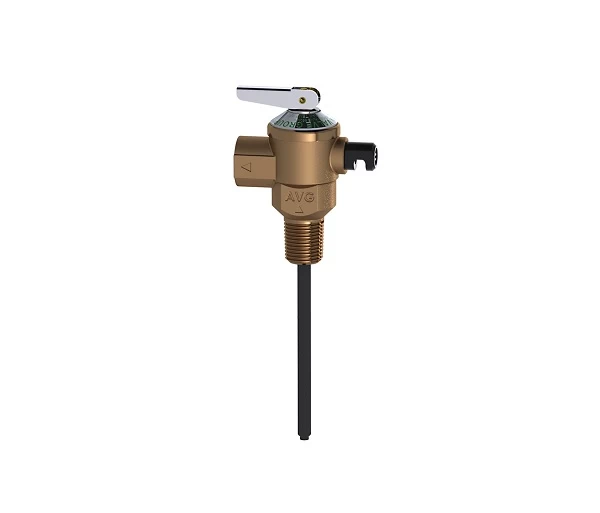

AVG Pressure And Temperature Relief Valve PTR15/1000-I

AVG Pressure and Temperature Relief Valve PTR15/1000-I

DN: 15 Pressure: 1000kPa
Colour Code: Green
15mm (1/2”) BSP
25mm Extended Body
Expansion: 10 KW

The AVG pressure and temperature relief valve is designed to relieve the increase in pressure caused by water expansion during the normal heating cycle.
The PTR valve will then relieve the increase in pressure by releasing drips of hot water to the drain line.
Should the electrical temperature cut-out device cease to operate correctly, the water will overheat. The temperature probe will then open the PTR valve and discharge hot water to the drain line.

Each valve is individually tested and calibrated to ensure that it meets the correct pressure specifications.
AVG Pressure and Temperature Relief Valve is designed and manufactured to meet Australian Standard AS1357.1, under Licence No. 2639 and meets AS4020, Drinkable Water Standard.
Manufactured under Quality Assurance ISO 9001 and ISO 9002 (UK).
Suitable for either horizontal or vertical installations.
The valve is designed to automatically reseat after each action.

It is recommended that an ECV be fitted to the cold water supply line.
This will relieve cold water, not hot water, during the heating cycle, saving energy and increasing the life of the PTR.
Some local governments make it mandatory to install an ECV in the cold water line. PTR and ECV valves are safety valves and should be replaced every 4 years.

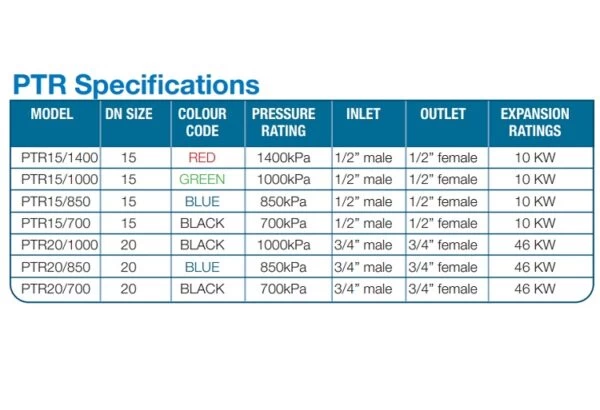

High pressure may cause excessive discharge and possible premature failure of the operating relief valve (see table).
The maximum water pressure usually occurs during the night, at the time of lowest water usage.
In any mains pressure water heater installation if the water pressure exceeds 80% of the nominal set pressure of the operating relief valve, a Pressure Limiting Valve must be fitted to the cold inlet.
If a cold water expansion control valve is fitted it will have a lower set pressure than the AVG Pressure and Temperature Relief Valve and therefore will be the main operating relief valve.
