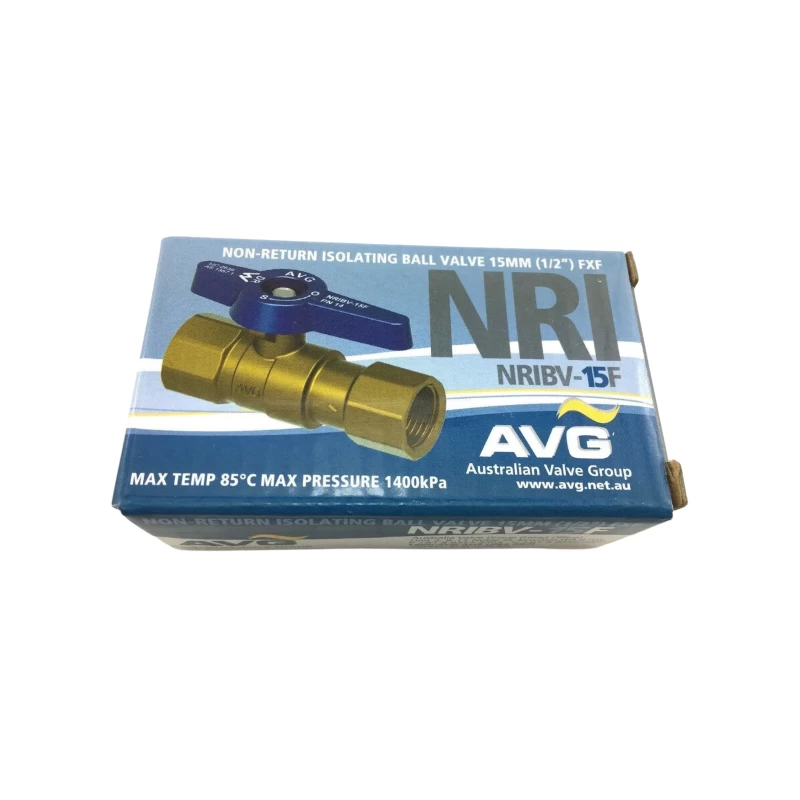

AVG Non Return And Isolating Valve NRIBV-15F

AVG Non Return and Isolating Valve NRIBV-15F

The NRIBV range of non-return isolation valves (NRI) combine the non-return and isolating functions in one simple compact valve.
The NRIBV range is available in 15mm and 20mm and with optional female, flare and nut and copper olive compression ends.
The removable strainer prevents grit and debris from entering the line.
Must be fitted in accordance with AS3500.1 and by a licensed plumber.
• Install valve with direction of flow as indicated by arrow on valve body.
• Valve suitable for horizontal or vertical installation.
• Flush plumbing before connection.
• Ensure handle is easily accessible.

NRIBV-15F features:
Complies with AS1357.1
Easily visible on or off quarter turn handle
Valve suitable for horizontal or vertical installation
Forged DR brass body
Model No: NRIBV-15F
DN Size: 15
Inlet / Outlet: 15 (1/2”) Female
Length: 64mm

Images are for illustration purposes only

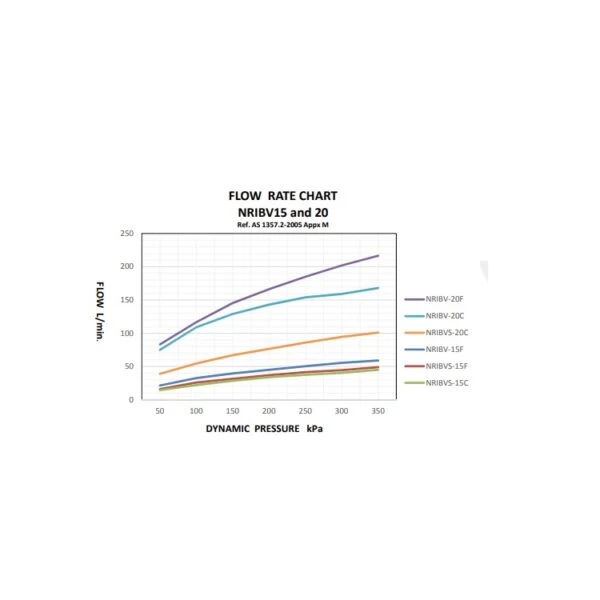

View AVG Non Return and Isolating Valve NRIBV-15F specs at AVG Spec Link
